Treadmill Manufacturer
ISO 9001:2008 certified factory
ODM & OEM Services
Get full IP protection and quality documentation
- All uploads are secure and confidential
Products we have for you
Jivanta is a fitness equipment manufacturer that offers a wide range of treadmills at a competitive price.
Rehabilitation
walking Pad
Curved
Pet
REQUEST A QUOTE FOR MORE DETAILS
All You Need To Know About Treadmill!
A treadmill is primarily used for walking, running, or climbing in place, mainly for cardio training and improving cardiovascular health.
Discover the ultimate guide to buying a treadmill with 6 key considerations: size and space, motor power, budget, workout programs, treadmill types, and benefits of using a treadmill.
What are specifications and performance of a treadmill?
Motor Power
The motor’s continuous-duty horsepower (CHP) rating determines the treadmill’s overall performance capability. For walking, 2.0 CHP is sufficient. For running and intense workouts, look for 3.0-4.0+ CHP.
Speed Range
Basic treadmills have a 0.5-10 mph speed range, while higher-end models can reach 12-15+ mph for serious runners.
Weight Capacity
Most treadmills support user weights from 250 to 400 pounds, depending on the model and construction quality.
Running surface
The belt size should be at least 20″ wide for walking, and 22″x55-60″ for running to accommodate full stride length. Look for orthopedic or cushioned belts to reduce joint impact.
Incline Range
An incline range of 0-15% is common, with some models offering declines as well. Higher incline capabilities up to 40% allow for more intense hill training.
7 different types of treadmill?
There are 7 different types of treadmills available, each designed to cater to specific fitness goals and preferences.
Learn more
Types
1) Manual Treadmills
2) Motorized Treadmills
3) Folding Treadmills
4) Desk Treadmills/Walking Pads
5) Hybrid Treadmills
6) Curved Treadmills
7) Anti-Gravity/Rehabilitation Treadmills
Components of treadmill
Jivanta takes the stress out of manufacturing by guaranteeing the quality and consistency of every part. Each order is dimensionally and visually inspected to make sure it meets the Jivanta Standard.
Frame
The frame is the foundation that holds the entire treadmill together. It provides support and stability.
Treadmill frames are typically made of steel or aluminum.
Motor
The motor is the power source that drives the rotation of the running belt. Treadmill motors use pulleys and a drive belt to generate horsepower (HP).
HP represents the peak speed, but only for short bursts.
CHP (Continuous horsepower) motors, however, sustain maximum speed for longer periods and endure daily use.
Thus, treadmills with CHP motors are faster, more durable, and generally more expensive.
Display Screen
The display on a treadmill is the panel. Here, you choose a workout program. You can adjust the speed or incline. You also see metrics like distance, progress, and time.
Broadly speaking, you have three categories of options. To increase entertainment value, they are:
- LED Consoles: The classic, basic workhorse. On LEDs, you push buttons to control the device and read data in LED lights. Good for people who want to just hammer out miles or meters and who don’t need a lot of frills.
- LED/LCD Hybrids: These units have some push buttons and LED info around an embedded video screen. Good for people who want to watch videos on the console. They may not need a full touchscreen experience.
- Tablet-style Touchscreen LCDs: Basically a high-end iPad mounted on cardio equipment. These displays have the most flexibility and premium features like streaming workouts.
Running Belt
The running belt is the surface on which you walk or run. It wraps around the front and back rollers.
The belt type and materials matter a lot. They affect how well the treadmill works and how much it costs to own.
There are types of belts:
Single Ply: The treadmill belt is one solid piece of rubber.
2-Ply: The top is rubber and higher quality treadmills use PVC rubber. The underside can be cotton, polyester, urethane, or mono-filament.
3-Ply and 4-Ply: Extra layers provide more heat absorption and cushioning. These layers can be rubber or other materials. Some companies once used carpeted neoprene, but it was discontinued due to disintegration. A 4-ply belt often includes a layer of glue, while a 3-ply belt does not.
more knowledge:
how to service and maintain a treadmill belt?
what should be the belt size of the commercial treadmill machine?
Is the treadmill easy to adjust?
can I replace a treadmill belt on my own?
Running Board
The deck, under the running belt, supports the belt.
Good treadmills use strong materials. Factories often use medium-density fiberboard (MDF) with a polymer coating to prevent warping.
Deck size is important. Larger decks (22″x60″ or more) give more running space, especially for taller users. Keep the deck surface lubricated. This makes the running belt last longer and runs smoothly.
Rollers
Two main rollers, the front and rear, are essential. The running belt moves around these rollers with the help of the motor. The rollers are usually made of aluminum or steel.
A high-quality treadmill uses a roller made from one solid piece of steel. A heavier roller is better because it has more inertia, which reduces the load on the motor.
Jivanta manufacturing process
Jivanta’s 25,000 sqm facility, staffed by 170 experts, ensures top-quality fitness equipment through meticulous production and advanced technology.
Electronics and control systems

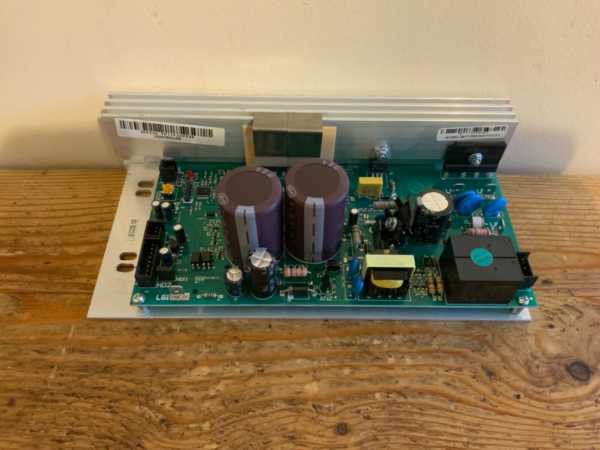

Control Panel:
The treadmill control panel is the ‘brain’ that controls all functions. Its quality determines the treadmill’s use and lifespan.
If the control panel fails, the treadmill can’t work. This leads to downtime and raises the risk of injury.
The Jivanta Standard - consistent quality, every time
Excellence in manufacturing is our goal. Every machine we produce meets the highest standards. We’re always raising the bar. Quality is our top priority, and our quality management systems ensure we never settle for less.
- Sample inspection (ISO-2859)
- Visual inspection for cosmetic quality
- Full review of official and requested documentation
- Packaging checks
- Compliance and standards review by ISO 20957
- Non-conformity reports and follow-up
- All QC systems adhere to ISO 9001:2015 requirements
More introductory guides for treadmill
- Principles of movement
- Shock absorption system
- Safety locks and emergency stop devices
- Overload protection
- Daily inspection
- Troubleshooting
- Cleaning and Maintenance
- Installation steps
- User experience
- Design Optimization
- Safety strandard
- Quality control
- Quality Management Systems
Our ordering process
Confirm specs
Configure your parts specifications and select a lead time that suits your schedule.
Receive instant quote
After confirm specs, our sales will get feedback to you within 3 work days.
Production
We select the best materials for your order, and production begins immediately
Quality control
We take full responsibility for making sure your parts are manufactured according to our standards
Delivery
We select the best manufacturer for your order, and production begins immediately
Feedback
Configure your part specifications and select a lead time that suits your schedule
FAQ's
We are a fitness equipment manufacturer and trading company. Since 2014, we have specialized in strength and cardio equipment. After 10 years, we have built strong connections in China.
Our factory has about 120 workers: 80 in production, 20 in assembly, and 20 in quality control, R&D, and management. Many brand buyers, like Wal-Mart and Unix-Group, have cooperated with us for years.
Click to learn more about our factory. We are excited to serve you with our experience as a potential supplier.
